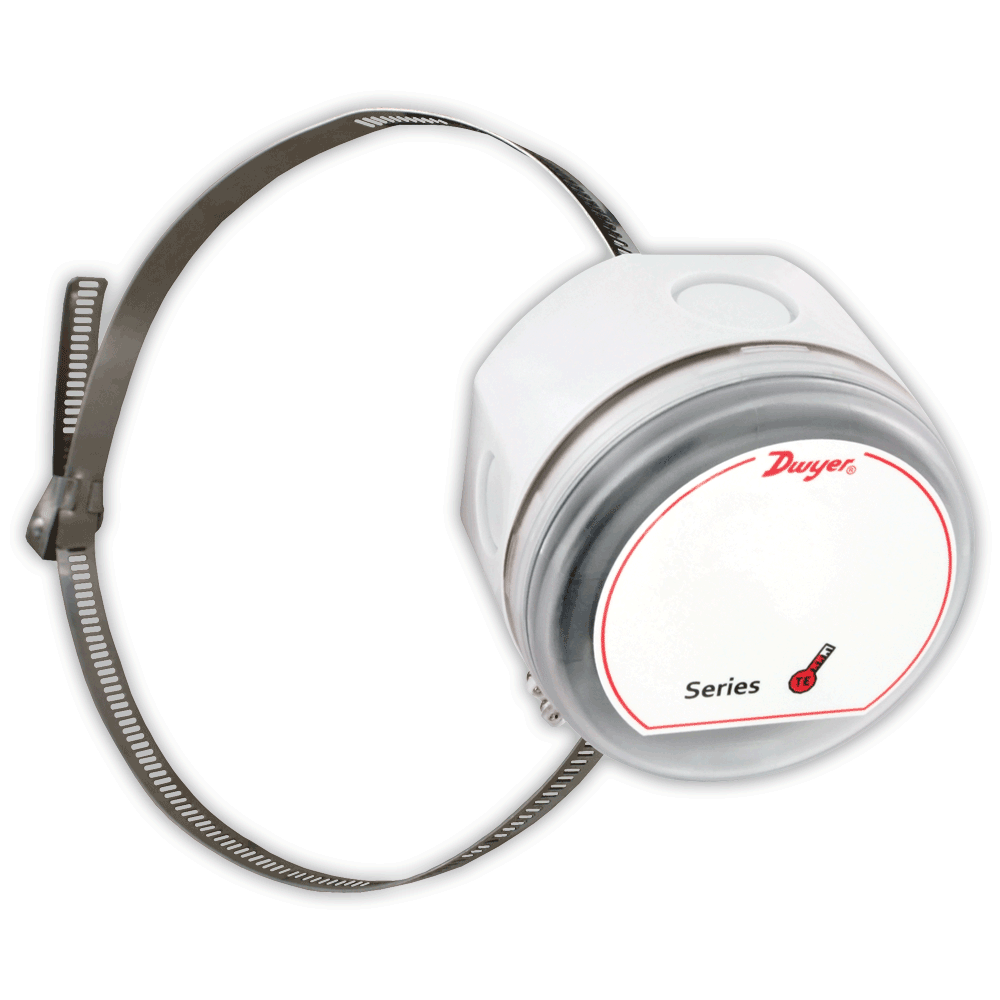

Dwyer 全天候表面温度传感器 TE-SNW系列

Strap On Design, Twist Off Cover, 2 to 6" Pipe Sizes

The Series TE-SNW Surface Temperature Sensors non-intrusively measures the process temperature in hot and cold water loops in buildings. An adjustable metal strap can tightly fit around 2 through 6" pipe sizes, allowing the surface area of the copper plate on the sensor to make good contact with the pipe surface. In order to work with most common building controllers, the output of the sensor can be chosen from 6 different RTD and Thermistor curves. Additional features include a quarter turn twist off cap that is chained to the housing to prevent it from getting lost, and multiple knockout locations and sizes to reduce installation time.

应用及案例


•  Heating or cooling loop line temperature monitoring

•  HVAC systems


产品特色


•  Easy to mount external tab housing

•  1/4 turn housing cover with chain

•  Multiple conduit knockouts for easy installation positioning

•  Non-intrusive temperature measurement of 2 to 6" pipes



技术指标



选项配件



安装手册


Instruction Manual.pdf



产品大图



型号列表



订货选型
