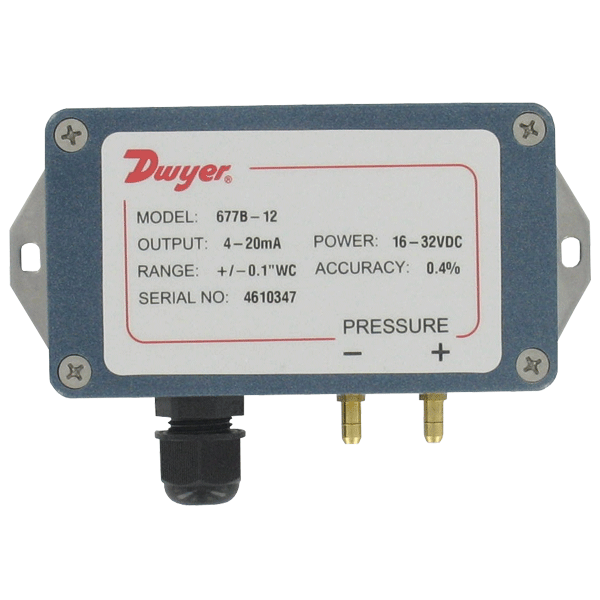

Dwyer 差压变送器 677B系列

NEMA 4 Enclosure with Integral Mounting Bracket

677B系列差压变送器设计用于测量压力范围低至0.1%,精度±0.4%。677B系列用于建筑能源管理系统,环境污染控制,烘箱增压,实验室和通风柜控制,HVAC和VAV应用。该变送器具有15个psid超压,反极性保护和EMI/RFI保护。内部调节允许使用非调节直流电源。NEMA 4外壳允许通用安装位置和整体安装标签简化安装。

校准选项可在附件。

应用及案例


•  Building energy management

•  Environmental pollution control

•  Lab and fume hood control

•  Variable air volume


产品特色


•  NEMA 4 housing enables a range of use outdoor or indoor where water is present

•  High accuracy at low pressure ranges provides exceptional measurement for insuring tight-control and minimizing costly out of specification conditions

•  Use with unregulated DC power permits easy access to electrical supply reducing costly power conditioning and wiring



技术指标


Service: Air And Non-Conductive, Non-Corrosive Gases.

Wetted Materials: 302 SS, Glass, Nickel, Silicone Rubber And Brass.

Accuracy: ±0.4% FS* At Room Temperature. *RSS Includes Non-Linearity, Hysteresis And Non-Repeatability.

Stability: ±1% FS/Yr.

Temperature Limits
Operating And Compensated: 0 To 185°F (-18 To 85°C);
Storage: -65 To 220°F (-54 To 105°C).

Pressure Limit: 15 Psi (100 KPa).

Thermal Effects: (Includes Zero And Span)<0.028% FS/°F, 0 To 185°F (-18 To 85°C).

Power Requirements: 16 To 32 VDC.

Output: 4 To 20 MA DC, 2-Wire.

Zero And Span Adjustments: Internally Accessible Potentiometers, Noninteractive.

Response Time: Approximately 10 Ms.

Max. Loop Resistance: DC: 0 To 800 Ohms.

Process Connection: 3/16" OD Barbed Brass Pressure Fitting.

Enclosure Rating: NEMA 4 (IP65).

Weight: 11.5 Oz (330 G).

Agency Approval: CE.

附件:

NISTCAL-PT1 - NIST Traceable Calibration Certificate For Pressure Transmitters.

A-302F-A - 303SS Static Pressure Tip With Mounting Flange, 4" Hook Style. For 3/16" ID Rubber Or Plastic Tubing, Includes Mounting Screws.

A-489 - 4" 303 SS Straight Static Pressure Tip With Flange.
