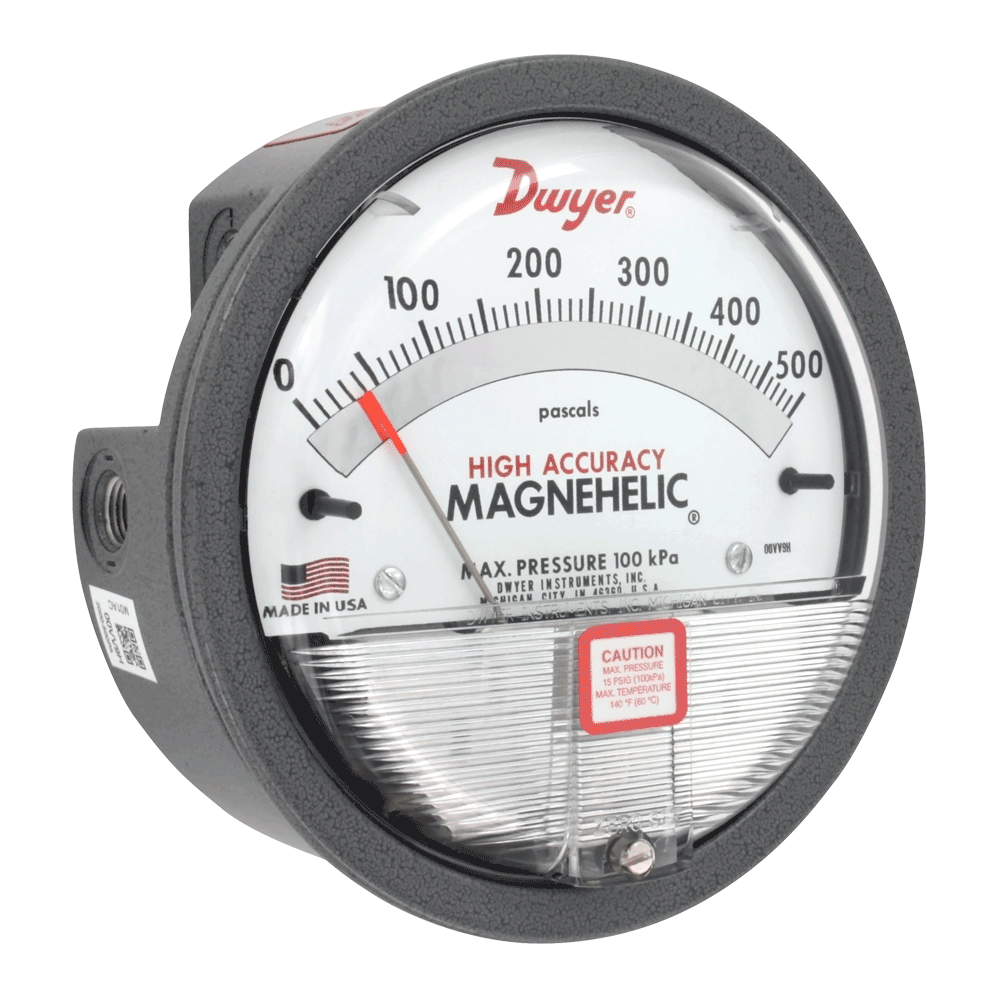

Dwyer 高精度差压表 2000-HA系列

Indicate Positive, Negative or Differential, Accurate within 1%

The Series 2000-HA High Accuracy Magnehelic® Gage is twice as accurate as the standard Magnehelic® gage. The well-engineered High Accuracy Magnehelic® Gage offers a mirrored overlay as standard in order to eliminate any parallax error when taking measurements. A six point calibration certificate is included with each high accuracy model. The rugged IP67 casing helps fully protect against dust and water ingress. The redesigned corrosion resistant brushed 304 stainless steel bezel option offers a clean tapered design, yet minimizes the possibility of any dust accumulation on the edges. See Series 2000 Magnehelic® Gage for additional information.

Place your order by using our Product Configurator, select the range you need and the option -HA High Accuracy.

应用及案例


•  Clean room positive pressure indication

•  Filter monitoring

•  Air velocity with Dwyer pitot tube

•  Blower vacuum monitoring

•  Fan pressure indication

•  Duct, room, or building pressures


产品特色


•  Accurate within 1%

•  Mirrored scale overlay eliminates parallax error

•  Six point calibration certificate included

•  IP67 - Fully protects against dust and immersion

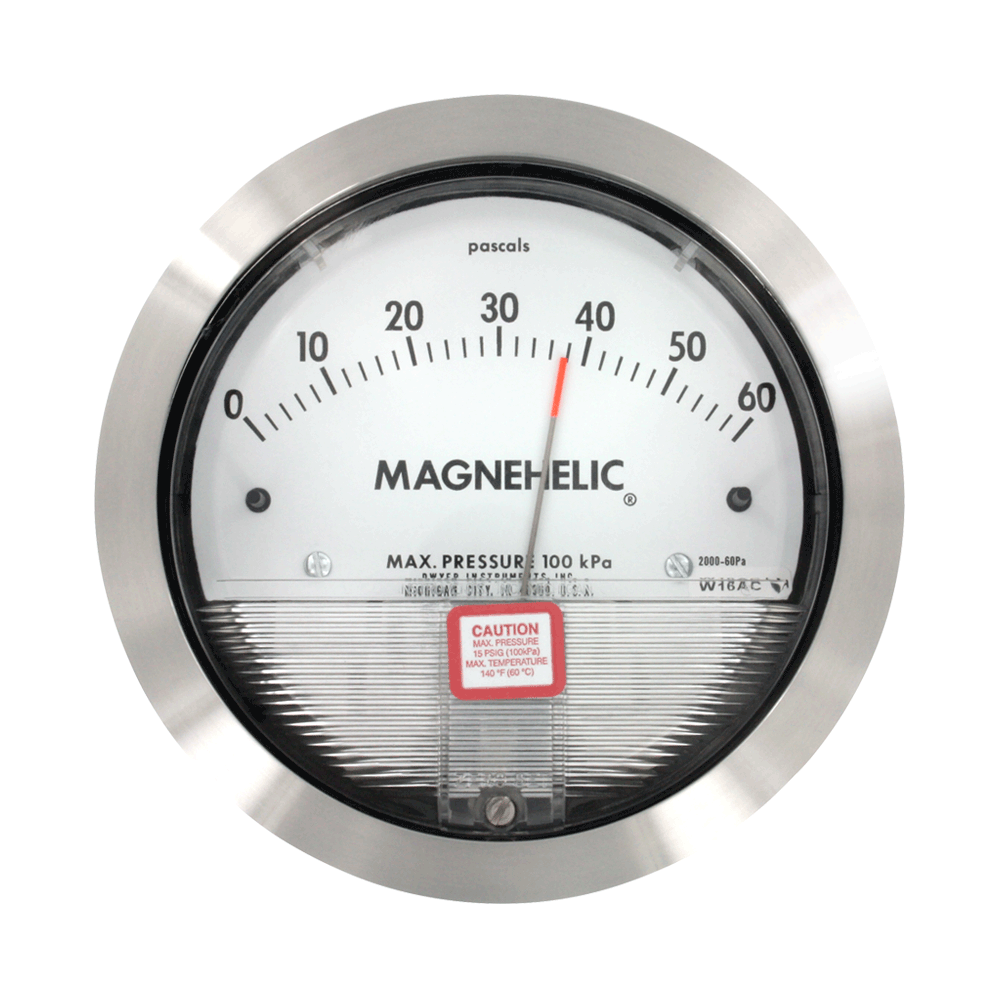

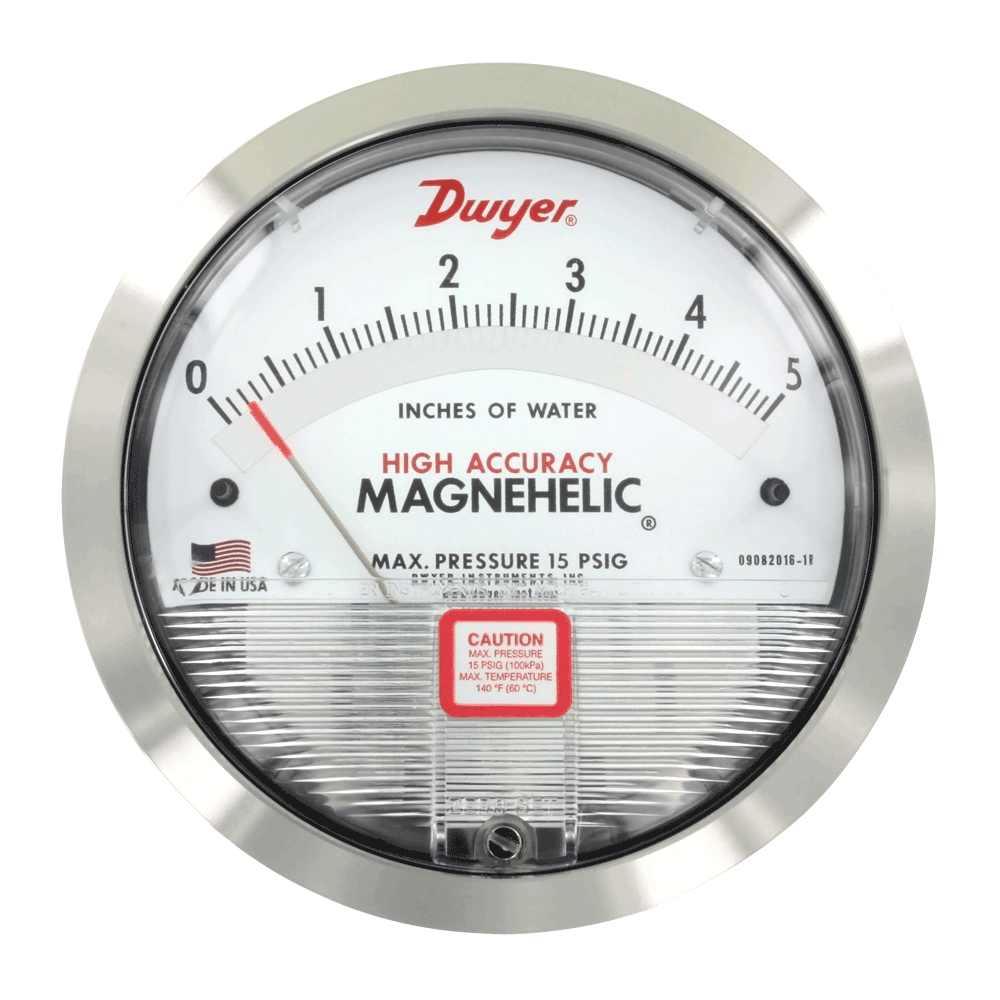

•  Optional corrosion resistant brushed 304 SS bezel

•  See Series 2000 Magnehelic® web page for additional Product Features



技术指标


介质:空气和兼容的非易燃气体(可选择天然气)。注:压力低于35 psi,可与氢气一起使用,选择丁腈橡胶膜片。

接液材料:咨询工厂。

外壳:压铸铝壳和亚克力盖。外表涂有灰色可承受168小时耐盐雾腐蚀试验。

精度:±1% FS (±1.5%(-0, -100PA, -125PA, -10MM )和±2%(-00, -60PA, -6MM )以21.1°C量程为主

压力范围:-20 in Hg~15 psig (-0.677 bar~1.034 bar)。

过压保护:对于标准型号,在大约25psig(1.72 bar)时,泄压塞打开。

温度范围:20至140°F(-6.67至60°C)。

尺寸:表盘直径为4?(101.6mm)。

安装定位:膜片用于垂直方向,其他位置方位请向厂方咨询。

连接件:连接件:相同的1/8? NPT 的高压和低压接头-一对在侧面,一对在背面。

标准附件::两个1/8? NPT 堵头,两个1/8? 连接橡胶管的配件,和三个嵌入式

安装用的配件以及螺钉。

重量:1 lb 2 oz (510 g)。

代理批准:符合EU Directive 2011/65/EU (RoHS II)。
