Dwyer 本安型压力变送器 IS626系列

For Use In Hazardous Locations

Dwyer IS626系列本质安全压力变送器可以用于精确测量兼容的气体和液体,兼容其316/316L不锈钢湿润部件。系列IS626全尺寸精度为0.25%。为工业环境设计的NEMA 4X (IP66)外壳,该发射机抗冲击和振动的大多数影响。型号可与3'电缆或M-12 4针连接。

IS626是UL列出的用于危险(分类)地点的产品。保护方法为本质安全“ia”。UL根据UL标准913第六版和CSA标准No. 157-92进行了调查。

应用及案例


·  Monitoring pressure in hazardous environments

·  Process


产品特色


·  Exceptional accuracy for insuring tight-control and minimizing costly out of specification conditions

·  NEMA 4X rated enclosure provides protection in harsh environments permitting outdoor monitoring or in areas where dust and particulate matter exists

·  Robust sensor provides shock and vibration resistance insuring stability in controlling pressure for process applications



技术指标


Service    Compatible gases and liquids

Wetted Materials    Type 316, 316L SS

Accuracy    0.25% FS

Temperature Limit    0 to 176°F (-18 to 80°C)

Compensated Temperature Range    0 to 176°F (-18 to 80°C)

Thermal Effect    ±0.02% FS/°F (includes zero and span)

Pressure Limits    See Catalog page

Power Requirements    10 to 28 VDC

Output Signal    4 to 20 mA

Response Time    50 ms

Loop Resistance    0 - 900 Ω maximum

Current Consumption    38 mA (maximum)

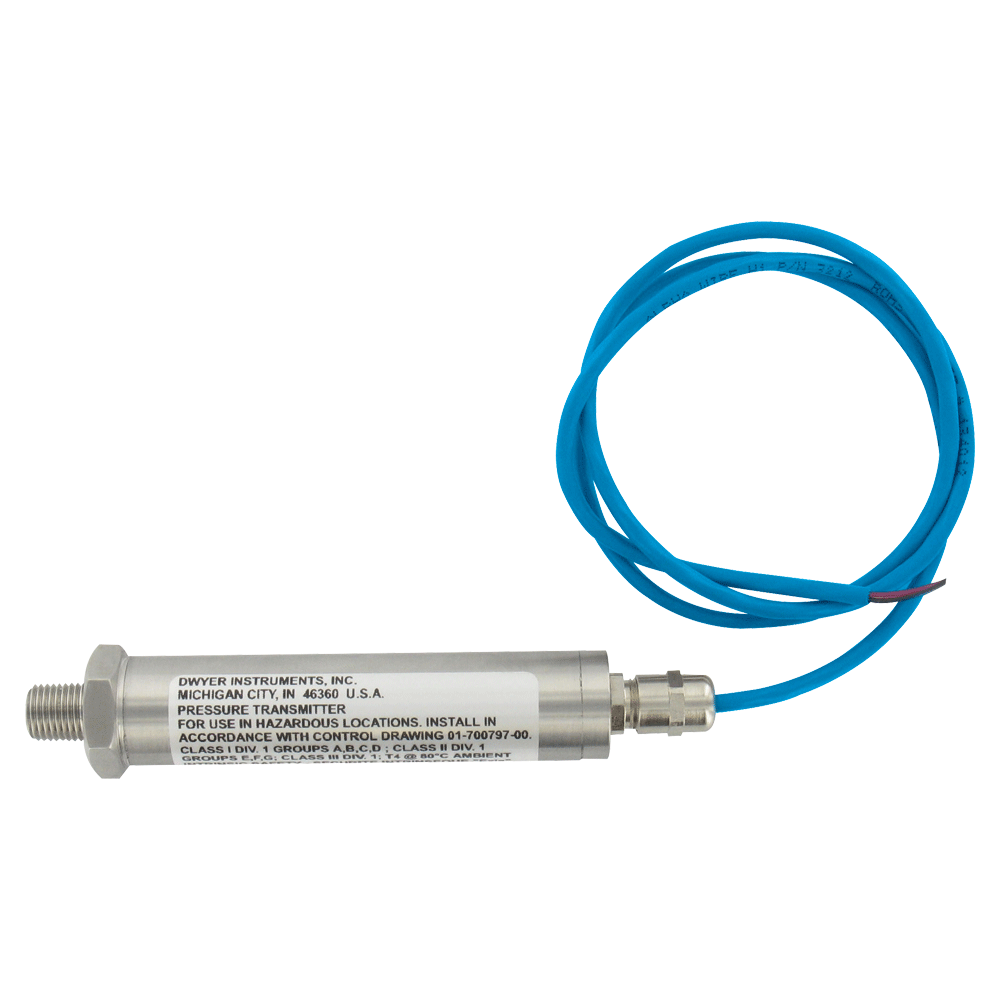

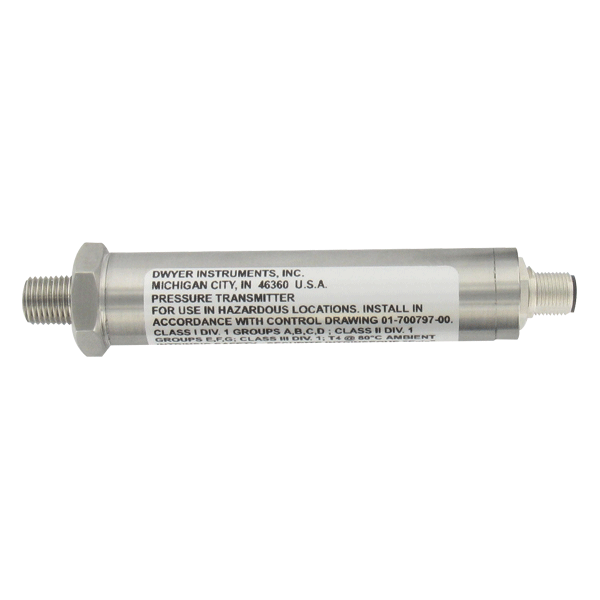

Electrical Connections    3 ft. cable or 4-pin M-12 Connector

Process Connection    1/4" male/female NPT and BSPT

Enclosure Rating    NEMA 4X (IP66)

Mounting Orientation    Mount in any position

Weight    8.9 oz (252 g)

Agency Approvals    CE, cULus Intrinsically Safe to UL Standard 913



For use in Hazardous (Classified) Locations:

Class I Div. 1 Groups A,B,C,D; Class II Div. 1 Groups E,F,G; Class III Div. 1.

Temperature Code: T4 @ 80°C ambient.

Install in accordance with control drawing 01-700797-00.



WARNING: To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing. Use with approved safety barriers using entity evaluation.



选项配件



Model   Number

Description


A-295

Female four pin M-12 to cable gland   connector.


A-231

16' (5 m) shielded cable with 4 pin   female M-12 connection.


A-251

Pressure snubber, brass, 1/4"   male/female BSPT.


A-257

Pressure snubber, 316 SS, 1/4"   male/female BSPT.


MTL7706

Intrinsically safe zener barrier.



产品大图



型号列表



订货选型


Model

Description

IS626-07-GH-P1-E1-S1

Intrinsically safe pressure transmitter,   15 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose   housing.

IS626-08-GH-P1-E1-S1

Intrinsically safe pressure transmitter,   30 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose   housing.

IS626-09-GH-P1-E1-S1

Intrinsically safe pressure transmitter,   50 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose   housing.

IS626-10-GH-P1-E1-S1

Intrinsically safe pressure transmitter,   100 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose   housing.

IS626-13-GH-P1-E1-S1

Intrinsically safe pressure transmitter,   300 psi pressure range, 4-20 mA output, 1/4" NPTM, general purpose   housing.
