Dwyer 外箍式超声波流量计 UFM2系列

Cost Effective, Compact and Adjustable Design, Non-Invasive

The Series UFM2 Compact Ultrasonic Flowmeters are economical, clamp-on, ultrasonic flowmeters. The UFM2 implements the transit-time difference to measure flow rates in pipes and can measure velocity and flow in pipes with outside diameters ranging from 3/4 to 7" (25 to 180 mm). This model comes with a volume pulse and 4-20 mA flow rate output.

KIT INCLUDES:

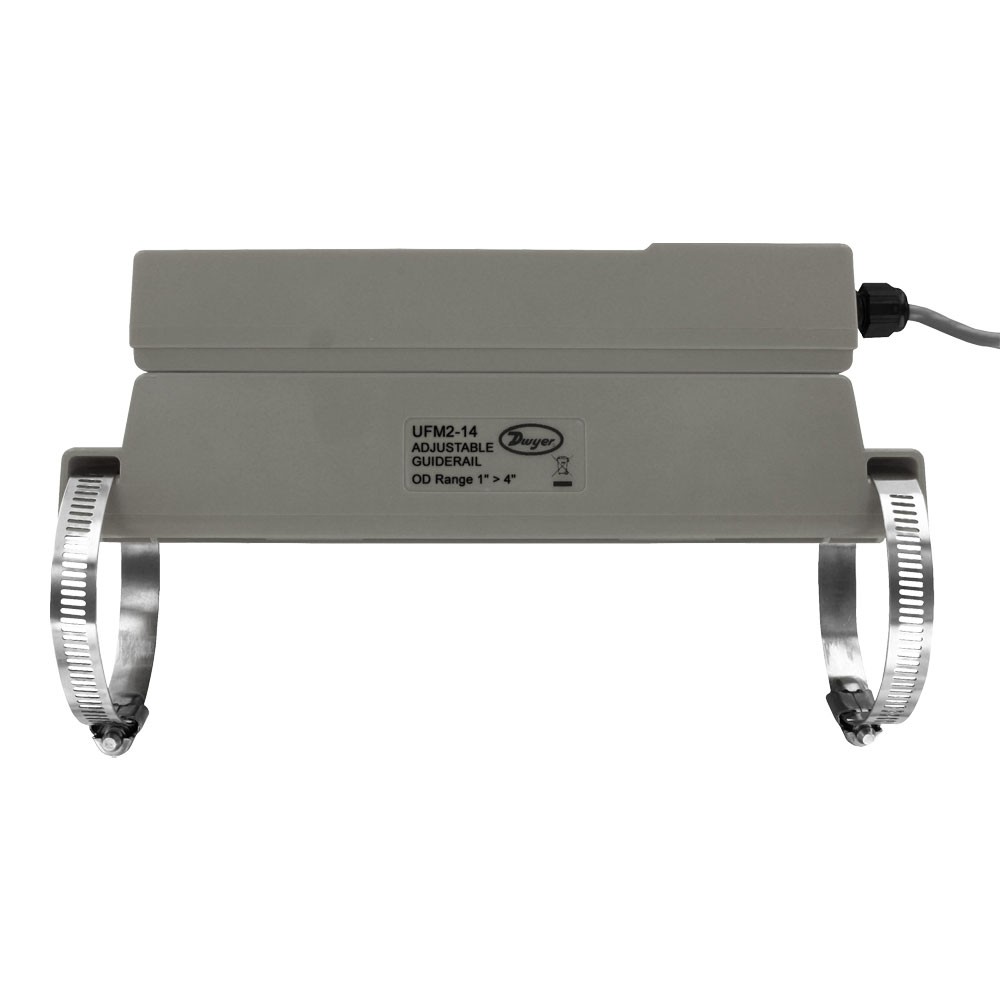

• Converter with adjustable guide rail
• Set of pipe clamps (model dependent)
• Set of small pipe adapter circle clamps
• Set of small pipe adapter V clamps
• Ultrasonic coupling grease

应用及案例


 Flow measurement for heat metering

 Metering and monitoring in: Chilled water, Potable water, Process water


产品特色


 Non-invasive pipe measurement

 Simple installation with all necessary components included such as converter, sensor, cables and mounting accessories

 Compact and lightweight design, featuring an easily installed, all in one clamp-on unit intended for homogeneous liquids that contain no air

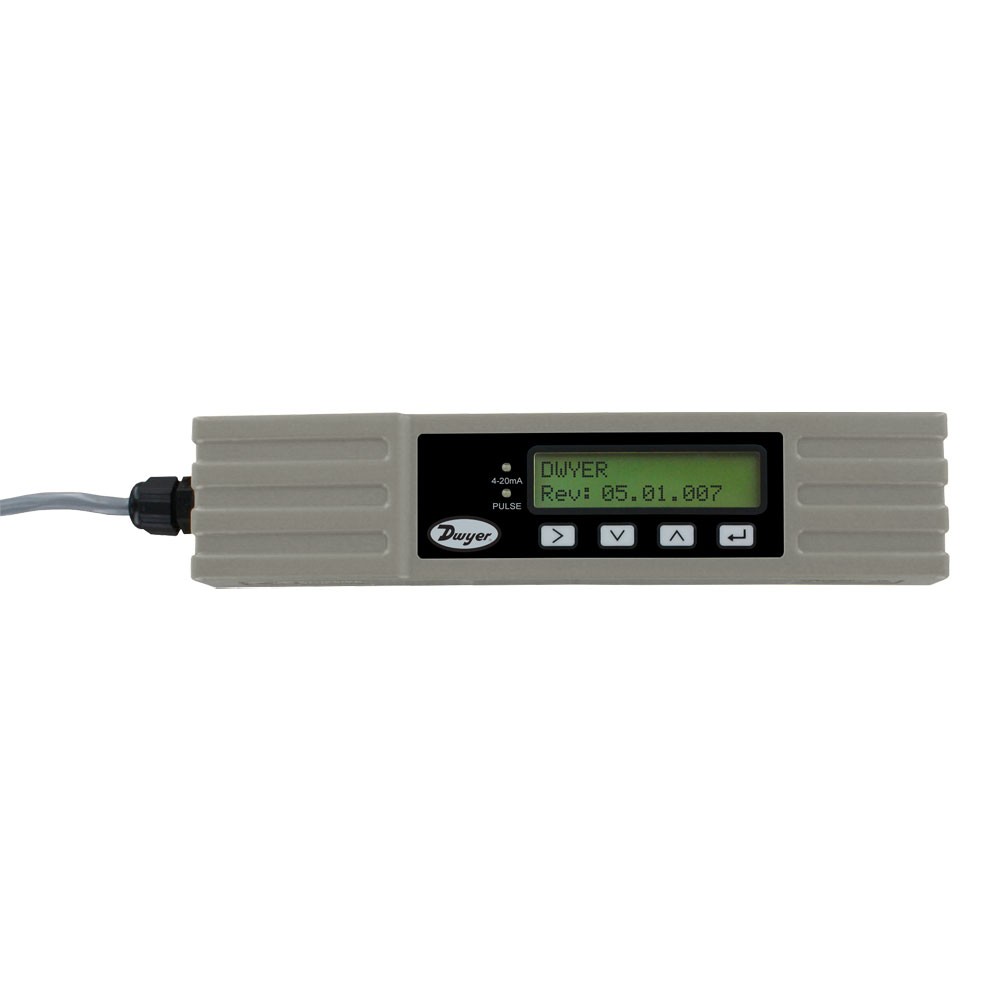

 Screen offers easy-to-read text displaying both flow rate and total with a convenient backlight for visual comfort



技术指标


Service    Clean water with <3% by volume of particulate content.

Range    0.33 to 32.8 ft/s (0.1 to 10 m/s).

Display    Backlit: 3.27" H x 0.74" W (83.1 mm x 18.8 mm), 2 line x 16 characters.

Accuracy    ±3% of flow reading for >0.98 ft/s (>0.3 m/s).

Power Requirements    12-24 VDC/VAC.

Power Consumption    7 W max.

Temperature Limits    Process: 32 to 185°F (0 to 85°C); Ambient: 32 to 122°F (0 to 50°C).

Outputs    Analog: 1 opto-isolated: 4-20 mA; Error current: 3.5 mA; Load resistance: 620 Ω max; Pulse: 1 optoisolated MOSFET relay, 500 mA max, 166 pps max, 200 Hz max.

Enclosure Rating    IP54.

Enclosure Material    Plastic polycarbonate.

Repeatability    ±0.15% of measured value.

Electrical Connections    16.4' (5 m) cable.

Response Time    <1 s.

Weight    2.9 lb (1.315 kg).

Agency Approvals    CE.



ADDITIONAL SPECIFICATIONS

Applicable Pipe Material    Steel, copper, or plastic.

Pipe Outside Diameter    3/4 to 7" (25 to 180 mm). Pipe size is dependent on pipe material and internal diameter.

Applicable Pipe Lining    None.

Pipe Wall Thickness    0.02 to 0.39" (0.5 to 10 mm).



选项配件



Model   Number

Description


NISTCAL-FU

NIST   traceable calibration certificate for ultrasonic flowmeters. NOTE: EQUAL   CERTS WILL BE CHARGED PER UNITS PURCHASED.



产品大图



型号列表



订货选型


Model

Description

UFM2-14

Compact   ultrasonic flowmeter, pulse and 4-20 mA outputs, 3/4 to 4" (25 to 115   mm) pipe

UFM2-16

Compact   ultrasonic flowmeter, pulse and 4-20 mA outputs, 5 to 7" (125 to 180 mm)   pipe
